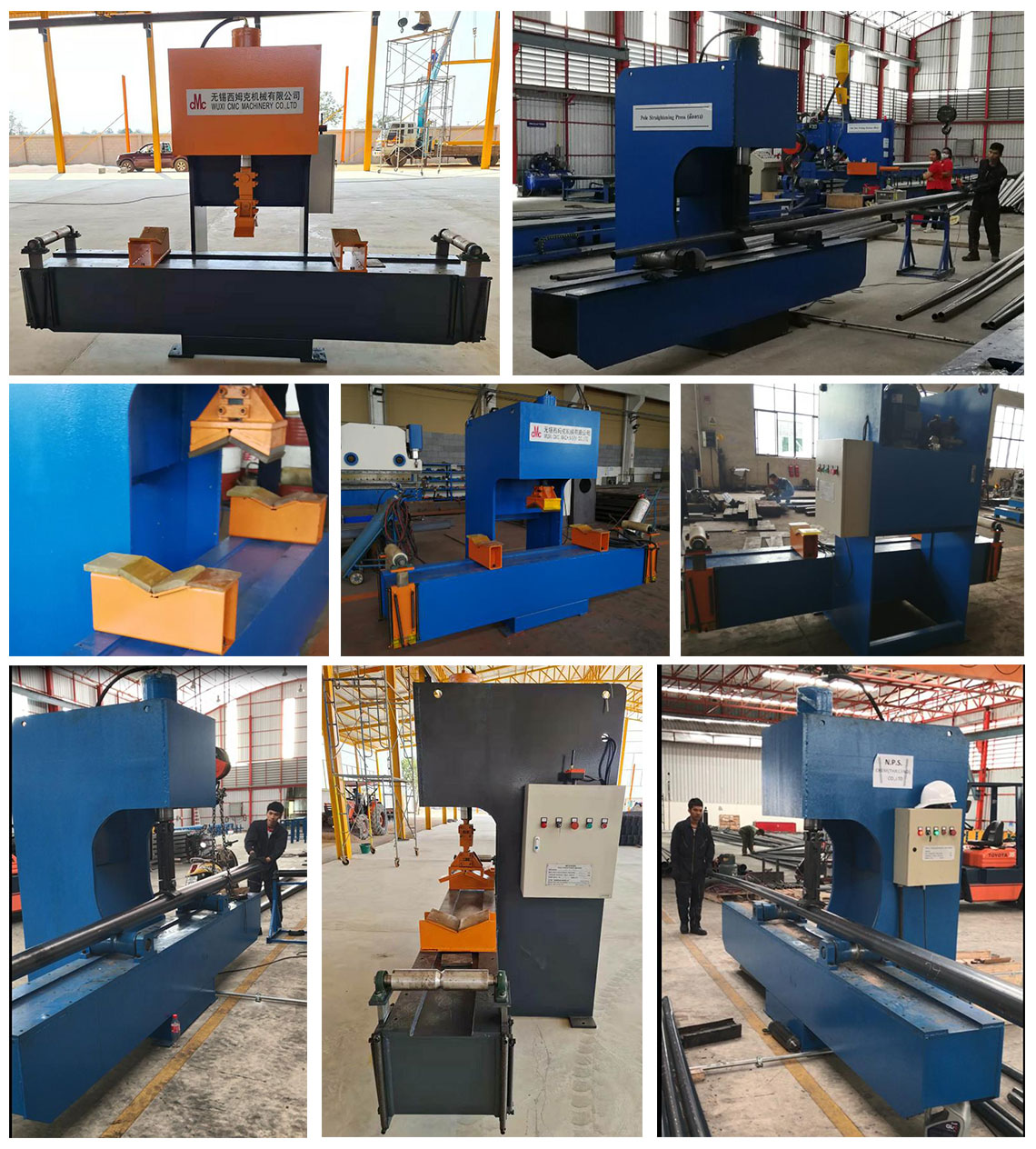

JZ-63-4000路灯杆校直机
路灯杆校直机 型号：JZ-30-3000, JZ-63-4000
应用：本机主要用于对路灯杆,高杆灯杆在合缝焊接和热镀锌后的弯曲变形进行校直。
带无线遥控操作手柄，聚胺脂覆盖防止压痕。
Application: it is for straightening the street light pole and high mast after welding and Hot Dip Galvanizing process.
With wireless remote control handle, with polyurethane cover
| TECHNICAL PARAMETER 主要技术参数 | ||||
| Name 项目 | Unit 单位 | Value 数值 | Value 数值 | |
| Max. Pole diameter灯杆直径 | mm | 350 | 650 | |
| Min. Pole diameter最小灯杆直径 | mm | 60 | 60 | |
| Nominal working pressure标称工作压力 | KN | 300 | 630 | |
| Length of worktable 工作台长度 | mm | 3000 | 4000 | |
| Distance between Housing 墙板间距 | mm | 840 | 900 | |
|
Throat Depth 喉口深度 (Cylinder center to side frame) |
mm | 210 | 310 | |
| Stroke油缸行程 | mm | 400 | 400 | |
| Max. Open Height 开启高度 | mm | 510 | 600 | |
| Main Motor(for Pump)电动机油泵 | Rotate Speed旋转速度 | r/min | 1440 | 1440 |
| Power功率 | KW | 5 | 7.5 | |
| Overall Dimensions外形尺寸 | Length长 | mm | 3000 | 4000 |
| Width宽 | mm | 1260 | 1260 | |
| Height高 | mm | 2230 | 2230 | |
| Weight重量 | Kg | 2000 | 2300 | |
