高杆合缝校直机
路灯杆校直机 型号：HJZ-80-5000
应用：本机主要用于对路灯杆和高杆灯杆在合缝焊接和热镀锌后的弯曲变形，进行校直。
带无线遥控操作手柄，聚胺脂覆盖防止压痕。
Application: it is for straightening the street light pole and high mast after welding and hot dip galvanizing process.
With wireless remote control handle and polyurethane cover.
Technical Parameter主要技术参数
| Name 项目 | Unit单位 | Value数值 | |
| Max. Pole diameter 灯杆直径 | mm | 800 | |
| Min. Pole diameter 最小灯杆直径 | mm | 60 | |
| Pole Thickness 厚度范围 | mm | 3~10 | |
| Nominal working pressure 标称工作压力 | KN | 800 | |
| Length of worktable 工作台长度 | mm | 5000 | |
| Distance between Housing 墙板间距 | mm | 900 | |
|
Throat Depth 喉口深度 (Cylinder center to side frame 油缸中心到墙板) |
mm | 400 | |
| Stroke油缸行程 | mm | 500 | |
| Max. Open Height开启高度 | mm | 900 | |
|
Main Motor (for Pump) 电动机油泵 |
Rotate Speed 旋转速度 |
r/min | 1440 |
| Power功率 | KW | 7.5 | |
|
Overall Dimensions 外形尺寸 |
Length长 | mm | 7000 |
| Width宽 | mm | 1260 | |
| Height高 | mm | 2230 | |
| Weight重量 | Kg | 4500 | |

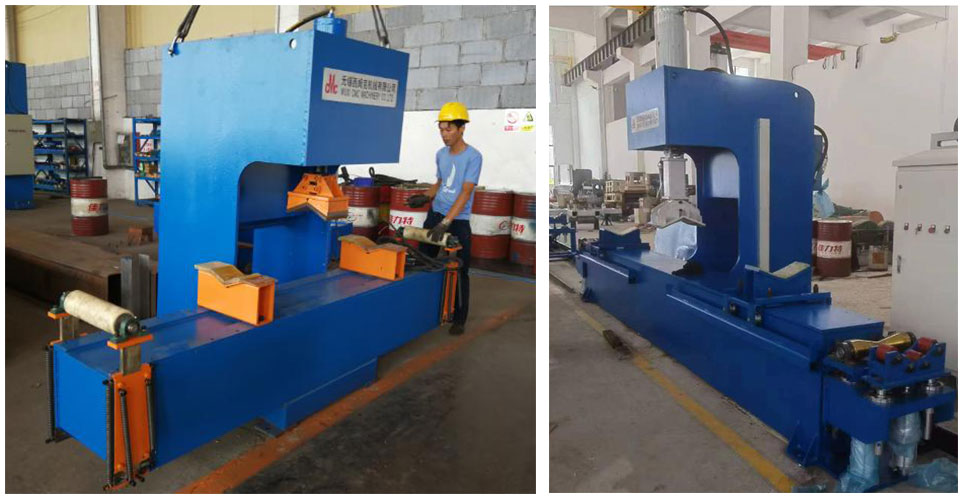

More similar photos:

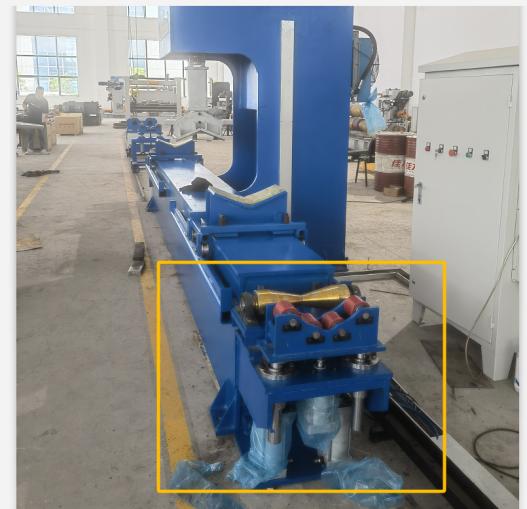

Option 1:
With pneumatic cylinder type roller for moving the axis direction of the pole;
With pneumatic up and down bearing disk roller for light pole rotation
For Pole Max. weight 300kg

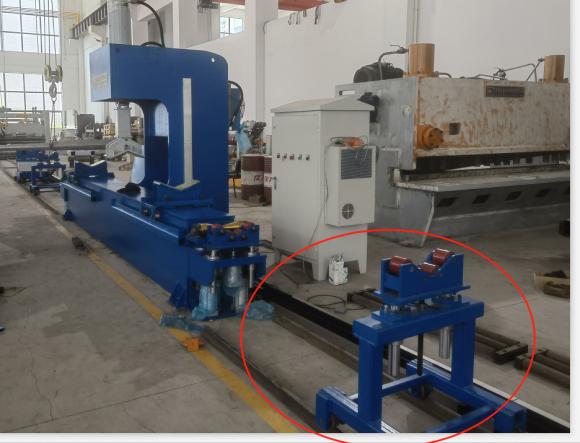

Option 2
With rail and manual moving on rail for Another standard with two disk rollers
The roller can be manual adjust a little up and down.

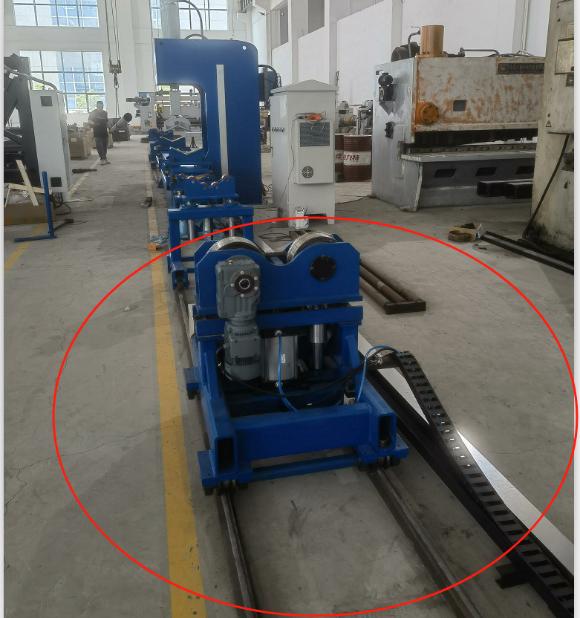

Option 3
Rising pole and motorized rotation pole device, For straightening machine, Pneumatic up and down Removable type for high mast, Pole Max. weight 800kg
